RNN, LSTM, GRU, and Saliency Map
Beneath a weathered cloak, three crafty goblins stand stacked, masquerading as an ancient wizard. Each goblin, akin to the layers of a Recurrent Neural Network. Every action built upon the input of others, warping the delicate weave of mana. Though seamless from the outside, this clever orchestration of individual parts works in mischievous harmony, each decision a product of collective cunning.
The Quest
Look through the archives for ancient magic, and implement the different flavors of recurrent neural networks whose power once reigned supreme and may rise anew to claim their throne.
Why RNNs?
RNNs arise from the need to handle sequences with variable lengths. By calling the RNN cell sequentially on each of its elements and passing along a compressed representation of the previous state.
Recurrent Neural Network (RNN)
RNNs are the most basic flavor, and give their name to the family of models. We start with a memory initialized to zeros, compute a simple function and pass it around.
class RNN(nn.Module):
def __init__(self, d_in, d_hidden):
super().__init__()
self.d_hidden = d_hidden
self.i2h = nn.Linear(d_in, d_hidden)
self.h2h = nn.Linear(d_hidden, d_hidden)
def forward(self, xs, memory=None, return_memory=False):
batch, d_context, d_in = xs.shape
outs = []
if memory is None: memory = t.zeros(batch, self.d_hidden, device=xs.device)
for i in range(d_context):
x = xs[:, i]
memory = F.tanh(self.i2h(x) + self.h2h(memory))
outs.append(memory)
return t.stack(outs, dim=1)
Long short-term memory (LSTM)
LSTMs try to address the shortcomings of RNNs by adding some kind of residual / skip connection to help the gradients flow between stages. We still have to handle the input, the short-term memory h_prev, but also a long-term memory c_prev.
class LSTMCell(nn.Module):
def __init__(self, d_in, d_hidden):
super().__init__()
self.W_f = nn.Linear(d_in + d_hidden, d_hidden) # forget gate
self.W_i = nn.Linear(d_in + d_hidden, d_hidden) # input gate
self.W_c = nn.Linear(d_in + d_hidden, d_hidden) # cell state update
self.W_o = nn.Linear(d_in + d_hidden, d_hidden) # output gate
def forward(self, x, h_prev, c_prev):
x = t.cat((x, h_prev), dim=1)
# handle long-term memory `c`
f_gate = t.sigmoid(self.W_f(x))
i_gate = t.sigmoid(self.W_i(x))
c_update = t.tanh(self.W_c(x))
c_prev = f_gate * c_prev + i_gate * c_update
# handle short-term memory `h`
o_gate = t.sigmoid(self.W_o(x))
h_prev = o_gate * t.tanh(c_prev)
return h_prev, c_prev
We orchestrate the LSTMCell in the same way as for RNN.
class LSTM(nn.Module):
def __init__(self, d_in, d_hidden):
super().__init__()
self.d_hidden = d_hidden
self.lstm_cell = LSTMCell(d_in, d_hidden)
def forward(self, xs, h_prev=None, c_prev=None):
batch, d_context, d_in = xs.shape
hs, cs = [], []
if h_prev is None: h_prev = t.zeros(batch, self.d_hidden, device=xs.device)
if c_prev is None: c_prev = t.zeros(batch, self.d_hidden, device=xs.device)
for i in range(d_context):
x = xs[:, i]
h_prev, c_prev = self.lstm_cell(x, h_prev, c_prev)
hs.append(h_prev)
cs.append(c_prev)
return t.stack(hs, dim=1), t.stack(cs, dim=1)
Gated Recurrent Unit (GRU)
GRUs are a simplification of LSTMs while retaining most of the performance.
class GRUCell(nn.Module):
def __init__(self, d_in, d_hidden):
super().__init__()
self.W_r = nn.Linear(d_in + d_hidden, d_hidden) # reset gate
self.W_z = nn.Linear(d_in + d_hidden, d_hidden) # update gate
self.W_h = nn.Linear(d_in + d_hidden, d_hidden) # hidden state update
def forward(self, x, h_prev):
cat = t.cat((x, h_prev), dim=1)
r_gate = t.sigmoid(self.W_r(cat))
z_gate = t.sigmoid(self.W_z(cat))
h_candidate = t.tanh(self.W_h(t.cat((x, r_gate * h_prev), dim=1)))
h_prev = (1 - z_gate) * h_prev + z_gate * h_candidate
return h_prev
The driving code remains the same.
class GRU(nn.Module):
def __init__(self, d_in, d_hidden):
super().__init__()
self.d_hidden = d_hidden
self.gru_cell = GRUCell(d_in, d_hidden)
def forward(self, xs, h_prev=None):
batch, d_context, d_in = xs.shape
outs = []
if h_prev is None: h_prev = t.zeros(batch, self.d_hidden, device=xs.device)
for i in range(d_context):
x = xs[:, i]
h_prev = self.gru_cell(x, h_prev)
outs.append(h_prev)
return t.stack(outs, dim=1)
Bonus: Stacked LSTM
Now all of the above can be stacked. To put the deep in deep learning. The Cell remains unchanged. Adding more depth to the network will, in principle, let us learn more complex functions.
class StackedLSTM(nn.Module):
def __init__(self, d_in, d_hidden, d_layers):
super().__init__()
self.d_hidden = d_hidden
self.d_layers = d_layers
self.lstm_cells = nn.ModuleList([LSTMCell(d_in if l == 0 else d_hidden, d_hidden) for l in range(d_layers)])
def forward(self, xs, h_prev=None, c_prev=None):
batch, d_context, d_in = xs.shape
outs = []
if h_prev is None: h_prev = t.zeros(self.d_layers, batch, self.d_hidden, device=xs.device)
if c_prev is None: c_prev = t.zeros(self.d_layers, batch, self.d_hidden, device=xs.device)
for i in range(d_context):
x = xs[:, i]
h_next, c_next = [], []
for lstm_cell, h, c in zip(self.lstm_cells, h_prev, c_prev):
h, c = lstm_cell(x, h, c)
h_next.append(h)
c_next.append(c)
x = h
outs.append(h)
h_prev = t.stack(h_next)
c_prev = t.stack(c_next)
return t.stack(outs, dim=1), h_prev, c_prev
Next Token Prediction: Learn Alice’s Adventures in Wonderland
Let’s train a character level next token predictor on a classic.
class AliceStackedLSTM(nn.Module):
def __init__(self, d_vocab, d_hidden, d_layers):
super().__init__()
self.embed = nn.Embedding(d_vocab, d_hidden)
self.stacked_lstm = StackedLSTM(d_hidden, d_hidden, d_layers)
self.unembed = nn.Linear(d_hidden, d_vocab)
self.unembed.weight = self.embed.weight
def forward(self, xs):
xs = self.embed(xs)
out, _, _ = self.stacked_lstm(xs)
return self.unembed(out)
Train for a bunch of epochs.
| Epoch | Sample |
|---|---|
| 0 | AMz-((uuqshpggpgppzzSg(zp(gqq(zh((-((ggzq(pz(qgzzS(uh |
| 100 | A) asel tho the therad in h the as t icl ooud shand the as tha s |
| 400 | Alien the the calked a that of the heres all should sayt, and to seen it |
| 3000 | As after her playing again and made all the roof. (she was surprised |
| 10000 | Alice, and they sawn Alice of the sky-boxed the Queen |
How does the model choose the next token
I made a small widget inspired by the Anthropic papers to look at how the model chooses the next token.
When hovering, we can see:
- the activations of the last layer
- the top 5 predicted tokens
- the influence of preceding tokens, positive in red, negative in blue
(PS: It looks cuter in light-mode)
I can’t say that the results are very intuitive to me. Looking at the second word, l, o, and o all encourage k, which goes nicely with my idea, but e doesn’t get much support even though it’s a 99% favorite to get picked.
Image Classification and Saliency Map
RNNs can also be used for classification. First, we tokenize the images; it could be by row, column, in a spiral pattern…

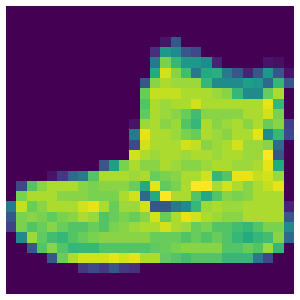

For the demo, I’ll use tiles.
def reshape_tile(xs, tile=7):
batch, c, h, w = xs.shape
assert h % tile == 0
assert w % tile == 0
assert c == 1
xs = xs.view(batch, h // tile, tile, w // tile, tile)
xs = xs.permute(0, 1, 3, 2, 4)
xs = xs.contiguous().view(batch, -1, tile * tile)
return xs
Compare Different Models: Accuracy and Saliency Map
Training for a few epochs just to get an idea of how capable the models are. The code for all the models is available on github.
For each model we’ll compute the accuracy on the test set.
@t.no_grad()
def accuracy(model, dataloader=testloader, reshape=None):
model.eval()
assert reshape is not None
correct, total = 0, 0
for xs, ys in dataloader:
xs = reshape(xs.to(device))
out = model(xs)
correct += (out.argmax(-1) == ys.to(device)).sum()
total += len(xs)
model.train()
return correct / total
As well as a saliency map.
def saliency(model, x, y, accumulate=1, noise=None, reshape=reshape_default):
model.eval()
x, y = x.to(device), y.to(device)
x.requires_grad = True
x.grad = None
xs = reshape(x)
out = model(xs)
loss = -out[0, y]
loss.backward()
return x.grad
MNIST
All the models’ performances are fairly similar.
| Model | Accuracy |
|---|---|
| MLP | 0.961 |
| CNN | 0.988 |
| RNN by rows | 0.964 |
| GRU by rows | 0.982 |
| LSTM by rows | 0.987 |
| LSTM by tiles | 0.966 |
What is interesting is how different the saliency maps look across architectures.
Based on the images, I would have assumed the CNN would significantly outperform everything else, but the GRU and LSTM by rows have similar accuracies.
Fashion MNIST
Once again, the accuracies are pretty similar.
| Model | Accuracy |
|---|---|
| MLP | 0.883 |
| CNN | 0.881 |
| RNN by rows | 0.850 |
| GRU by rows | 0.881 |
| LSTM by rows | 0.869 |
| LSTM by tiles | 0.857 |
This time, I would have put my money on the MLP.
The code
You can get the code at https://github.com/peluche/RNN-LSTM-GRU/blob/master/rnn-lstm-gru.ipynb
Sources
For nice visualizations of the different RNNs architectures: https://colah.github.io/posts/2015-08-Understanding-LSTMs/
